Fitup

Fitup Create

The  Fitup Create tab helps you to create Fitup request in mobile and sync the details to the web application.



To create Fitup request,do the following

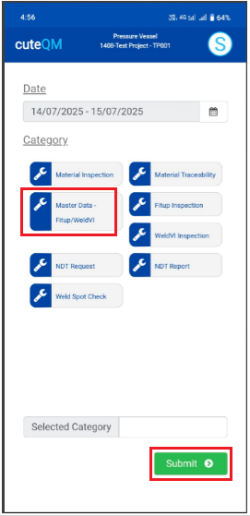

1. Take offlinedata for Master Data-FITUP/WeldVI.

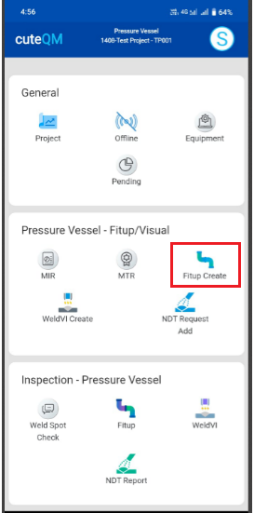

2. Click Fitup Create menu
3. Here joints listed to create the Fitup

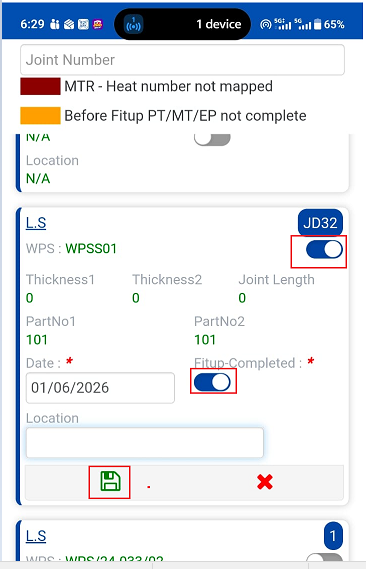

4. Select the joints
5. Enable Fitup completed toggle button
6. Click Save

Fitup request created successfully.

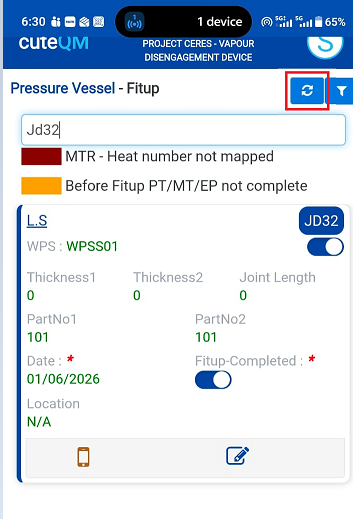

Click Sync button at the top to sync data to web manually.Otherwise it will be synced automatically.

Fitup Inspection

For fitup inspection,do the following steps



1. Take offline data for Fitup Inspection.

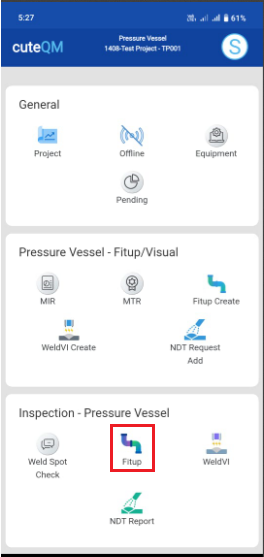

2. Click Fitup menu in inspection

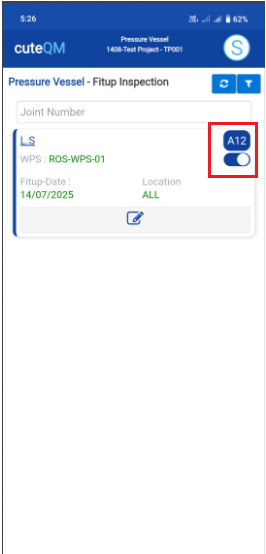

3. Here fitup inspection created joints listed
4. Select the joint

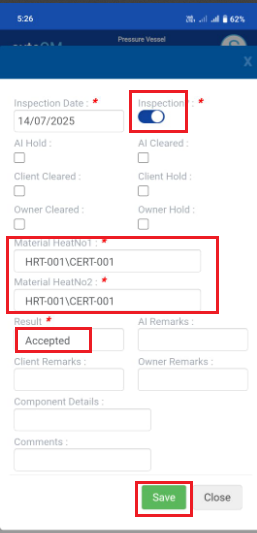

5. Enable inspection toggle button
6. Select heat number 1and heat number 2 and Result
7. Click Save button placed at the bottom

Fitup inspection updated successfully.

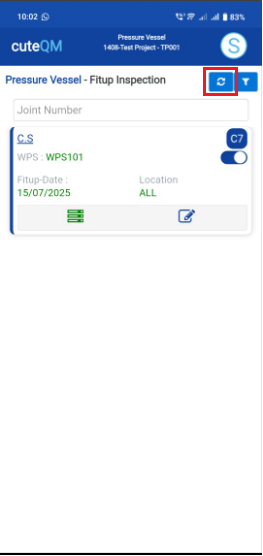

Click Sync button at the top to sync data to web.Otherwise it will be synced automatically.
